pvc工程圍擋結構本身不生銹，防腐，無需噴漆，大大降低后期成本，破損可回收利用。該圍擋的厚度和顏色美觀，可以適應各種客戶。下面來講講pvc圍擋安裝步驟及施工質量保證措施內容吧。

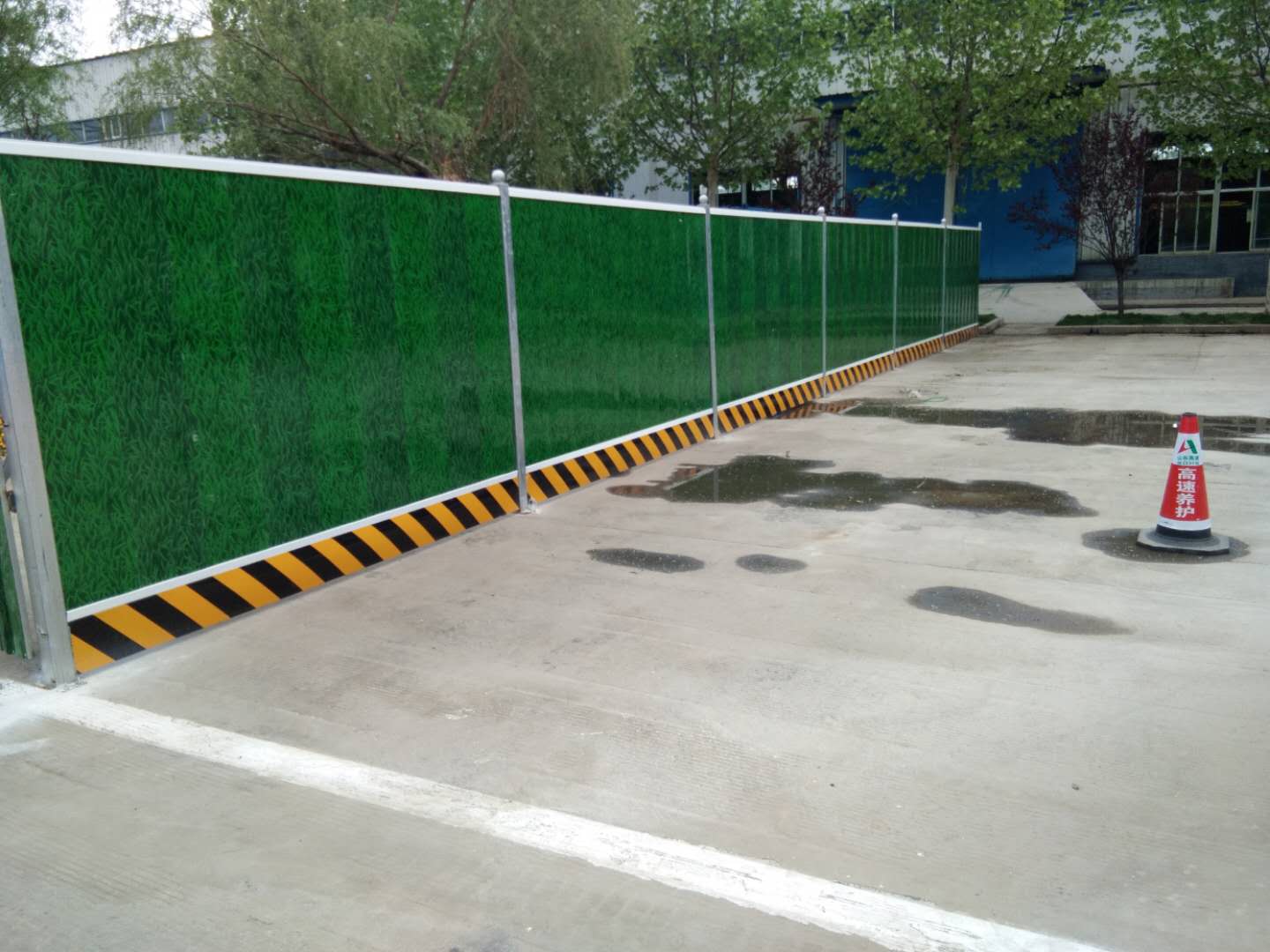

The PVC engineering enclosure structure itself is not rusty, corrosion-resistant, and does not need painting, which greatly reduces the later cost, and the damage can be recycled. The thickness and color of the fence are beautiful and can be adapted to various customers. Now let's talk about the installation steps and construction quality assurance measures of PVC enclosure.

pvc圍擋安裝步驟

Installation steps of PVC enclosure

1、平整地面，清理場地，方便現場安裝pvc外殼；

1. Level the ground, clean the site, and facilitate the installation of PVC shell on site;

2、未硬化的土路面，每3米挖一個500*500的坑，深度400mm，澆筑混凝土；

2. For the unhardened earth pavement, dig a 500*500 pit every 3 meters, with a depth of 400mm, and pour concrete;

3、圍墻入廠，沿施工路線放置材料；

3. Materials shall be placed along the construction route after the enclosure enters the plant;

4、用膨脹螺絲固定立柱，用水平儀調平；

4. Fix the column with expansion screws and level it with a level gauge;

5、將上下橫桿夾在板上；6、固定組裝好的上下橫桿，鎖緊自攻螺釘，然后安裝立柱；

5. Clamp the upper and lower cross bars on the plate; 6. Fix the assembled upper and lower cross bars, lock the self tapping screws, and then install the columns;

7、安裝完圍擋結構后，可以安排50厘米的空地作為砌磚的基礎，以增強穩定性和牢固性。

7. After installing the enclosure structure, a 50 cm open space can be arranged as the foundation of bricklaying to enhance stability and firmness.

pvc圍擋結構質量保證措施：

Quality assurance measures for PVC enclosure structure:

立柱尺寸：120*120mm，內襯：100*100*1.0鍍鋅管；

Column size: 120*120mm, lining: 100*100*1.0 galvanized pipe;

上橫管尺寸：130*40mm，內襯尺寸：30*50*0.8鍍鋅管；（為特殊材料定制）。

Upper horizontal pipe size: 130*40mm, lining size: 30*50*0.8 galvanized pipe; (customized for special materials).

PVC板面由雙層塑鋼板組成，扣板規格可根據客戶要求定制。

PVC board surface is composed of double-layer plastic steel plate, and the specification of gusset plate can be customized according to customer requirements.

pvc圍擋正常為75/m（注：不同規格，不同）

The normal price of PVC guardrail is 75/m (Note: different specifications, different prices)

組織措施。建立健全各項質量檢驗檢驗制度，建立質量管理體系，明確各級質量責任。建立嚴格的自檢制度，確保工藝合格。

Organizational measures. Establish and improve various quality inspection systems, establish a quality management system, and clarify the quality responsibilities at all levels. Establish a strict self inspection system to ensure that the process is qualified.

加強宣傳教育。“以質量求生存，以質量求信譽”，提高每位員工的質量意識。

Strengthen publicity and education. "Quality for survival, quality for reputation", improve the quality awareness of each employee.

建立質量與經濟掛鉤的獎懲制度。

Establish a reward and punishment system linking quality with economy.

嚴格控制材料和成品部件的質量。

Strictly control the quality of materials and finished parts.

在安裝pvc圍擋時，需要平整地面，清理場地，使現場安裝更容易。對于未硬化的土路面，每隔3米挖一個500*500深400mm的坑，澆筑混凝土；圍擋進廠，沿施工路線放置材料；用膨脹螺絲固定立柱，并用水平儀調平；將上下橫條夾在板上；將組裝好的上下橫桿固定好，用自攻螺釘鎖緊，然后安裝A柱；安裝完圍擋結構后，50厘米的空地可以布置成磚基礎，增強穩定性和牢固性。

When installing PVC fences, it is necessary to level the ground and clean the site to make it easier to install on site. For the unhardened earth pavement, dig a 500*500 400mm deep pit every 3 meters and pour concrete; Fence into the plant and place materials along the construction route; Fix the column with expansion screws and level it with a level gauge; Clamp the upper and lower horizontal bars on the board; Fix the assembled upper and lower cross bars, lock them with self tapping screws, and then install the A-pillar; After installing the enclosure structure, a 50 cm open space can be arranged into a brick foundation to enhance stability and firmness.
